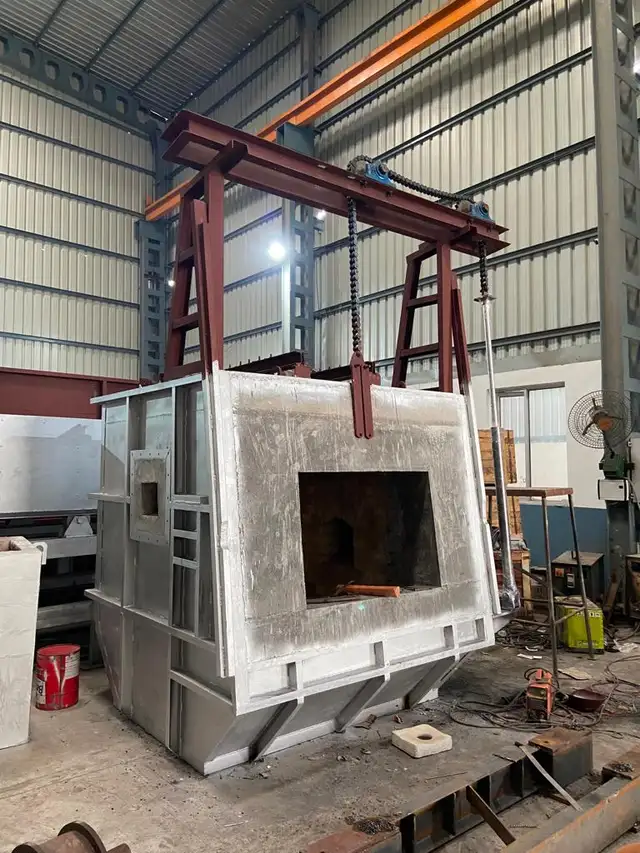

Brand New Aluminum Smelting Furnace - Ton / Batch

Turn scrap aluminum into ingots and alloys - start your own smelting business today and generate thousands per day.

Technical Specifications - Hydraulically Tilting Aluminum Melting Furnace (1 Ton / Batch, Brick Lining)


Max Temperature: 900C
Design Capacity: 1000 kg / batch
Tilting Operation: Hydraulic operated
Scrap Charging: Manual

Burner:


Type: Diesel-fired
Firing Capacity: 50 liters/hour (maximum)
Number of Burners: 01
Fuel: Natural Gas (CV = 8,200 KCal/kg) or Diesel (CV = 9,500 KCal/kg)
Burner Control: Manual
Ignition: Manual

Blower:


Type: Entec centrifugal blower with 5 HP motor
Pressure: 32 inch wg
Airflow: 600 CFM
(Motor in client scope)

Pumping Unit:


Oil Pump Capacity: 1W 1S pump with 1 HP motor (20 lpm)

Furnace Shell:


Fabricated from 8 mm thick M.S. plates
Reinforced with structural steel (angles & channels)
Mounted on ISMB150 base frame to reduce civil foundation requirements

Furnace Lining:

Hearth / Side Wall (up to molten metal level):


Hi/Al bricks (60-65%): 230 mm thick
Insulation bricks: 115 mm thick
Insulite castable: 75 mm thick
Total Thickness: 420 mm

Side Wall (above molten metal level):


Hi/Al bricks (45-50%): 230 mm thick
Insulation bricks: 115 mm thick
Hysil board: 50 mm thick
Total Thickness: 395 mm

Furnace Roof (Brick Lined):


Hanger & Shoulder: 230 mm thick
Insulation bricks: 75 mm thick
Total Thickness: 305 mm

Tilting Arrangement:


Hydraulic tilting with 2 cylinders & power pack assembly
Cylinders mounted to furnace shell sides
LIPAXIS tilting design
