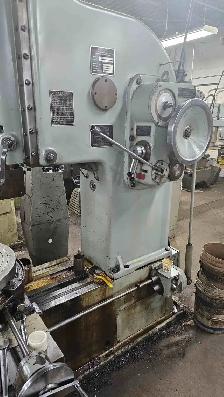

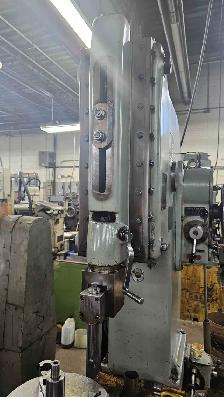

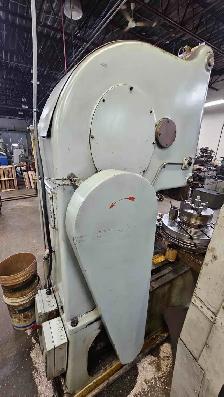

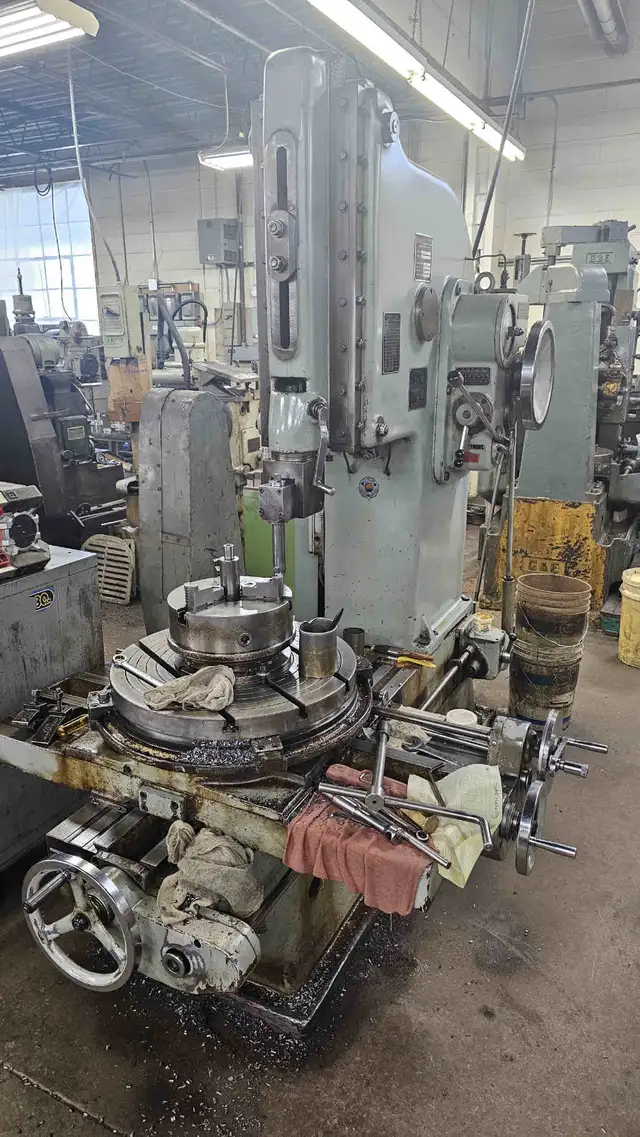

Here Is A Havlik B5032 Vertical Slotter We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - B5032
Diameter Of Rotary Table - 25"
Stroke Length - 14”
Longitudinal Travel Of Table - 30”
Cross Travel Of Table - 25”

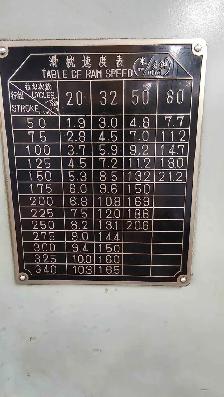

Ram Speed - 20 to 80 RPM
Feed Rates - 0.08 to 1.21 MM
Table Feed Rate - 0.052 to 0.783 MM
Table Rotation - 360°
Main Motor - 4 KW
Electrics - 575V/3PH/50HZ
Approximate Weight - 7,500 LBS
Approximate Overall Dimension - 90”L x 60”W x 89”H

Equipped With;

360° T-Slotted Rotary Table
Motorized Table Travels
Adjustable Stroke
Hydraulic System
Automatic Feeding
Push Buttons
