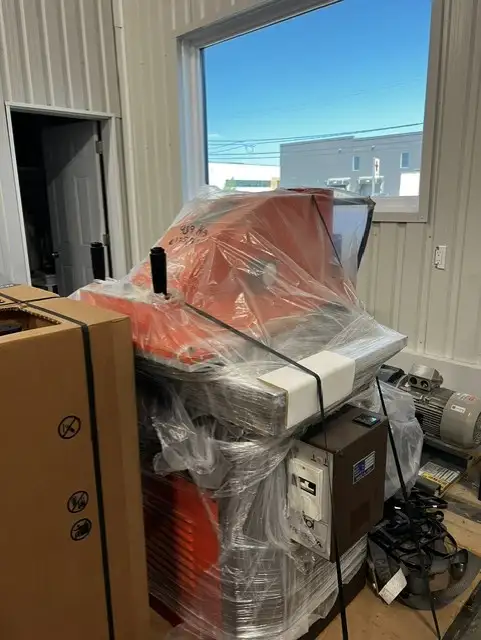

HYDRAULIC SWING ARM CLICKER PRESS
FIPI FE 25/A — 25 TON — ITALIAN BUILT

Italian-built hydraulic die cutting press, 25 ton cutting force. We bought
it used approximately 5 years ago. It was working at the time of purchase.
Since then it has stayed strapped to a pallet and stored indoors — it was
never put into service in our shop.

IDENTIFICATION
• Make and model: FIPI FE 25/A (Made in Italy)
• Serial number: 12157
• Type: hydraulic swing arm clicker press / die cutting press
• Year of manufacture: not shown on the nameplate

SPECIFICATIONS
• Cutting force: 25 ton
• Cutting table: 38.5" x 18" (97.8 x 45.7 cm)
• Overall footprint: approx. 48" x 44" x 58" (122 x 112 x 147 cm)
• Weight: 989 kg / 2,175.8 lb (weighed)
• Power: motor 220/380 V, wired for 220 V 60 Hz
(dual voltage indicates a three-phase motor — plan for 220 V three-phase,
a phase converter or a VFD)
• Two-hand push-button safety control (standard on this model, to be
confirmed once unwrapped)

MATERIALS
Leather goods and footwear, orthotics and prosthetics, gaskets (rubber, cork,
fibre, felt, neoprene), EVA and polyurethane foams, technical textiles, thin
plastics, vinyl and paperboard.

WHY THIS MACHINE
25 tons cuts through heavy leather, rubber and dense foam in a single stroke.
The swing arm lets you place the die by eye and nest parts tightly, so you
waste less material. FIPI is an Italian die-cutting press builder; these
machines routinely run 30 years in production. The manufacturer's plate is
intact, which makes sourcing parts and dies straightforward.

FULL DISCLOSURE
We would rather say it up front:
• Used machine. We do not know the hours or the maintenance history under
the previous owner.
• Idle for roughly 5 years, not powered up since we bought it. On a hydraulic
press that has sat this long, budget for a fluid change and a seal check
before production use. That is routine maintenance, not a repair.
• Still strapped to its pallet: ram stroke and daylight have not been
measured. We will open the packaging by appointment.
• The asking price reflects these caveats.

TERMS
• Asking price: CAD $5,900, negotiable. Taxes extra.
• Sold as is, where is, with no express or implied warranty.
• Transport, rigging and handling at the buyer's expense and risk.
• Payment in full prior to removal.
• Inspection strongly recommended, by appointment in Saint-Hyacinthe, Quebec.

Full spec sheet with photos available on request.
