Single Head Uncut Saw DoorMach SC402
Description
The DoorMach SC402 is a high-performance industrial up-cut saw specifically engineered for the heavy-duty demands of aluminum and PVC profile fabrication. Its 21" (550 mm) blade capacity and hydro-pneumatic feed system make it a center piece for window, door, and storefront manufacturing.
Key Technical Specifications
Feature
Details
Blade Diameter
21" (550 mm) Carbide-tipped blade
Motor Power
2.2 kW (3 HP)
Max Cutting Depth
Up to 10.4"
Mitering Range
±60∘ (Left and Right)
Preset Stops
15∘,22.5∘,30∘,45∘,60∘,90∘
Clamping System

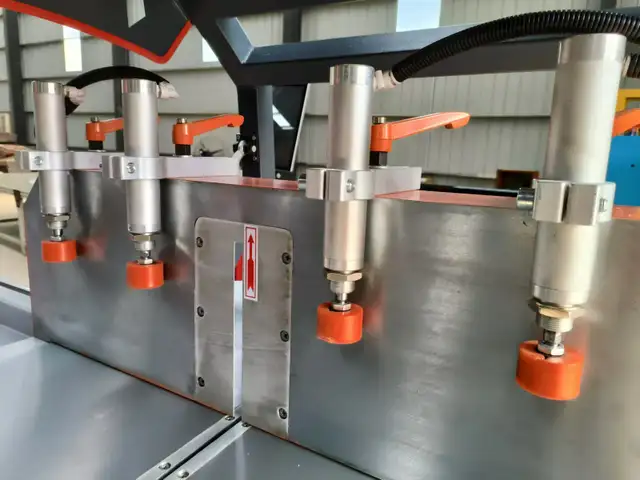

2 Horizontal 2 Vertical pneumatic clamps
Blade Feed
Hydro-pneumatic (adjustable speed)
Safety & Precision Features
Two-Hand Safety Operation: Ensures the operator’s hands are clear of the cutting zone during the cycle.
Safety Interlocks: Features a top door safety interlock and a protective cover that must be closed for the saw to operate.
Digital Angle Display: Allows for high-precision angle setting beyond the standard fixed stops.
Internal LED Lighting: Provides clear visibility of the cutting area for better accuracy and safety.
Lubrication System: Integrated mist spray system to keep the carbide blade cool and extend its lifespan when cutting aluminum.
Included Accessories

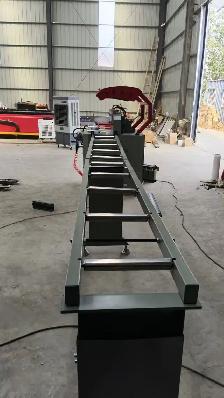

Scaled Conveyors: Comes with 10′ (3 meter) infeed and outfeed conveyors to support long extrusions.
Air Gun: Included for cleaning aluminum chips and debris from the workspace.
CSA Compliance: Built to meet North American electrical and safety standards.
Optional Models:
We also have the option for 600mm, 650mm, and 700mm saw blades instead of 550mm.
Why Choose the Doormach?
The "up-cut" design is inherently safer than traditional chop saws because the blade is fully enclosed under the table when not in use. This design also provides better chip management, as gravity helps pull debris down into a collection system rather than throwing it toward the operator.
More details www.doormach.com or at www.moonmachineryinc.com
Would you like me to help you compare this model to other CNC aluminum machining centers, or do you need a list of compatible carbide blades for this specific 21" saw?
Moon Machinery Inc. is a Canadian supplier specializing in high-quality industrial machinery for both metalworking and woodworking. Based in Ontario, the company provides specialized equipment for aluminum profile processing, window and door manufacturing, and various non-ferrous material applications.
www.MoonMachineryinc.com
1
Core Offerings & Expertise
The company is a primary source for up-cut saw technology and advanced CNC solutions, including:
Precision Up-Cut Saws: Available in pneumatic, automatic, and CNC-controlled configurations. These are designed for clean, high-speed cutting of aluminum extrusions and PVC.
Specialized Machinery: Adjustable cutting angle saws, dual-head configurations, and machines integrated with dust collection systems.
CNC Machining Centers: Advanced 3, 4, 5, and even 8-axis machining centers specifically for aluminum profile processing.
Broad Industrial Range: Their catalog also includes CNC laser cutters (fiber laser), press brakes, routers, edgebanders, and used machinery options.
Contact Information
The company has recently updated its primary location to Woodbridge:
Address: 5 Director Court, Unit 101, Woodbridge, ON L4L 4S5
Phone: 647-250-7505 (General Inquiry) / 1-866-550-7898 (Toll-Free)
Email: info@moonmachineryinc.com
Website: moonmachineryinc.com
Key Services
Sales & Service: They provide both new and used equipment with available VIP service deals and extended warranties.
Technical Support: Offer installation, operator training, maintenance contracts, and remote technical support.
Bilingual Support: They provide services and software interfaces in both English and French to serve the Canadian market effectively.
Whether you are looking for a top-selling aluminum cutting saw or a specific industrial solution for window and door manufacturing, Moon Machinery focuses on high-precision equipment tailored to industrial fabrication needs.
#OntarioManufacturing Unitized Curtain Wall | Unitized window wall | Aluminum extrusion | Aluminum extrusion Milling| Robotic production | CNC Automation machine for window production |
