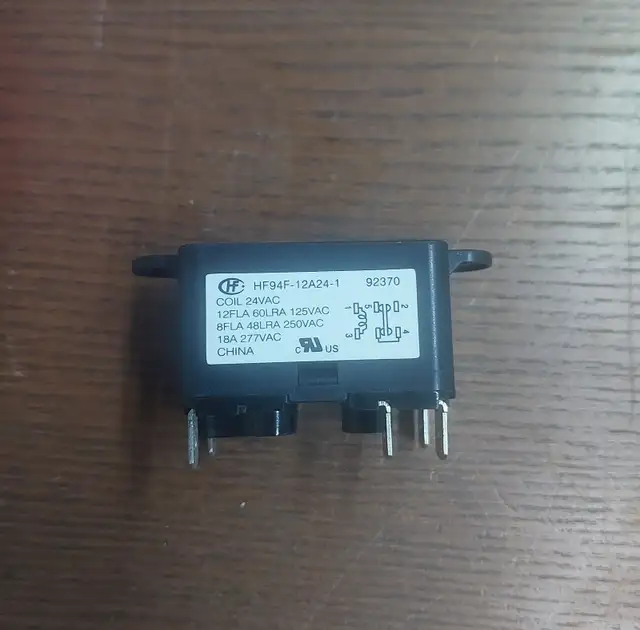

Hongfa HF94F-12A24-1 / 92370 – 24V Heavy-Duty Fan Switching Relay SPDT

Condition: Used – Clean, Tested & Fully Working

Key Specifications
Brand / OEM: Hongfa (HF)
Model: HF94F-12A24-1
Part Number: 92370
Casing Stamp: T202213
Description: 24V Heavy-Duty Fan Switching Relay
Configuration: SPDT (Single Pole Double Throw)
Coil Voltage: 24 VAC
Load Rating @ 125 VAC: 12 FLA / 60 LRA
Load Rating @ 250 VAC: 8 FLA / 48 LRA
Load Rating @ 277 VAC: 18A
Certification: cURus Recognized Component
Made In: China

Terminal Connections
Terminals: Five 1/4" male quick-connect spade terminals
Coil: Terminals 1 & 3
Common: Terminal 5
Normally Closed (NC): Terminal 4
Normally Open (NO): Terminal 2
SPDT configuration allows the common terminal to switch between the NC and NO contacts.

️ Construction & Mounting
Enclosed black plastic housing
Integrated mounting flange
2 mounting screw holes
Compact design for HVAC electrical control applications

Common Applications
HVAC fan switching
Furnace blower control
Air handler fan circuits
Heating and cooling equipment
Ventilation systems
General-purpose 24V control circuits

Compatibility
Suitable as a replacement where the original relay requires:
24 VAC coil SPDT contacts compatible load rating
⚠️ Please verify the relay model, coil voltage, contact configuration, load rating, terminal numbering, and mounting pattern before installation.
