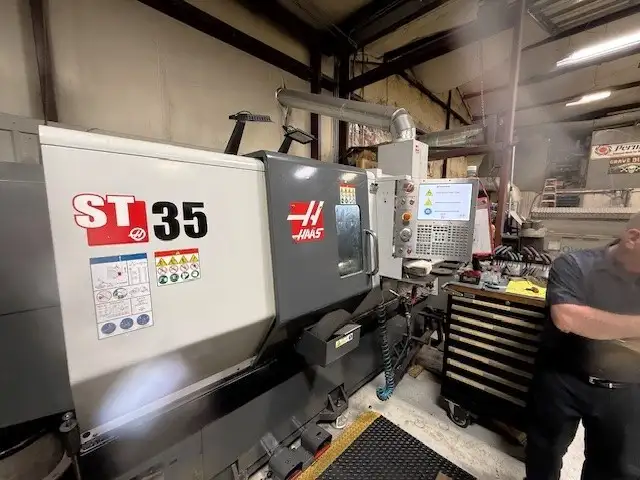

2017 Haas ST-35

Chuck Size 12" 3 Jaw Hydraulic
Maximum Swing 31.75"
Maximum Turning Diameter 21"
Maximum Machining Length 26"
Maximum Bar Capacity 4"
X-Axis Travel 12.75"
Z-Axis Travel 26"
Spindle Nose / Spindle Bore A2-8" / 4.62"
Spindle Speeds 2,400 RPM
Spindle Motor 40 HP
Transmission 2 Speed Gearbox
Number of Turret Positions 12 Station Bolt on Type
Rapid Traverse Rates 945 IPM
Tailstock Taper MT #4
Machine Dimensions 121" x 79" x 83"
Machine Weight 14,300 lbs.

EQUIPPED WITH
Optional 2400 RPM, 40 HP, 2 Speed Geared Spindle
4" Bar Capacity
12" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher
Programmable Tailstock
Tool Presetter
Visual Part Programming System
User Definable Macros
Enclosure Exhaust System
High Intensity Lighting
Coolant System with Tank & Pump
Rigid Tapping
Dual Foot Pedals for Chuck and Tailstock
USB Port Interface
RS 232 Port Interface
15" Color LCD Monitor
Wired 220V Electrics

**Servo On Hours 6,172**
**Motion Hours 3,207**
**Spindle Hours 3,273**

**Available to be seen under power for inspection, Manufactured New in March 2017**
**Prices New As Equipped At $150,760**
