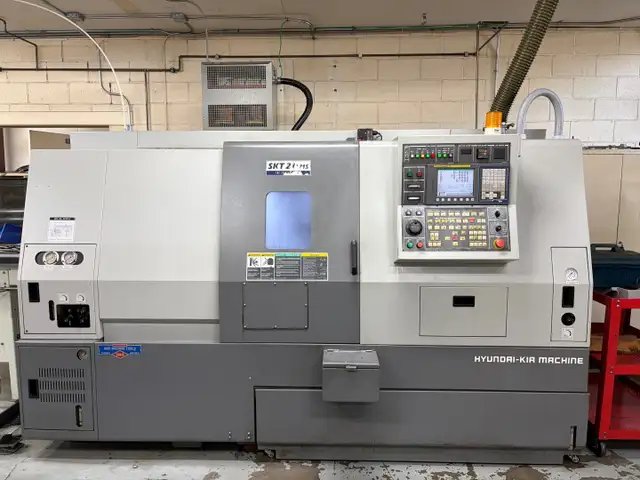

Make --- Hyundai Kia
Model --- SKT21LMS
Serial Number --- G3153-0443
Controller --- Fanuc Series 0i-TC

SPECIFICATIONS
Swing Over Bed --- 551 mm (21.7")
Swing Over Saddle / Cross Slide --- 351 mm (13.8")
Maximum Turning Diameter --- 259 mm (10.2")
Maximum Cutting Length --- 530 mm (20.87")
Distance Between Spindles --- 551 mm (21.7")
X-Axis Travel --- 211 mm (8.3")
Z-Axis Travel --- 551 mm (21.7")
Main Spindle Chuck Size --- 203 mm (8")
Main Spindle Chuck Type --- Hydraulic
Main Spindle Bore --- 78.7 mm (3.1")
Main Spindle Maximum Bar Capacity --- 65 mm (2.56")
Main Spindle Nose --- A2-6
Main Spindle Speed --- 25 - 4,000 RPM
Main Spindle Motor (30 Min. / Continuous) --- 14.9 / 11.2 kW (20 / 15 HP)
Sub-Spindle Chuck Size --- 127 mm (5")
Sub-Spindle Chuck Type --- Hydraulic
Sub-Spindle Bore / Bar Capacity --- 43.2 / 33 mm (1.7" / 1.3")
Sub-Spindle Nose --- A2-8
Sub-Spindle Speed --- 40 - 4,000 RPM
Sub-Spindle Motor (30 Min. / Continuous) --- 3.7 / 2.2 kW (5 / 3 HP)
Turret --- 12 Stations
Rotary / Live Tool Speed --- 30 - 4,000 RPM
Rotary Tool Motor (30 Min. / Continuous) --- 3.7 / 2.2 kW (5 / 3 HP)
Rapid Traverse - X Axis --- 15 m/min (590 IPM)
Rapid Traverse - Z Axis --- 18 m/min (708 IPM)
Feed Rate - X & Z --- 1 - 3,988 mm/min (0.04 - 157 IPM)
Parts Catcher --- Yes
Tool Eye Measurement - Upper Turret --- Yes
Machine Dimensions (L x W x H) --- 3,048 x 1,676 x 2,032 mm (120" x 66" x 80")
Machine Weight --- 4,300 kg (9,480 lbs)

EQUIPPED WITH
Fanuc Series 0i-TC CNC Control
2x Radial Live Tooling
2x Axial Live Tooling
Sub-Spindle
Parts Catcher
Tool Setter
Chip Conveyor

___________________
TERMS AND CONDITIONS

F O B: Mississauga, ON

Taxes: Extra as applicable

Terms: Payment in full before shipment

NOTE: Specifications are meant only as a guideline and should be confirmed by the customer before purchase.

Please feel free to call us directly at 905-488-0709, or email info@gizmo-mt.ca to discuss this further.
