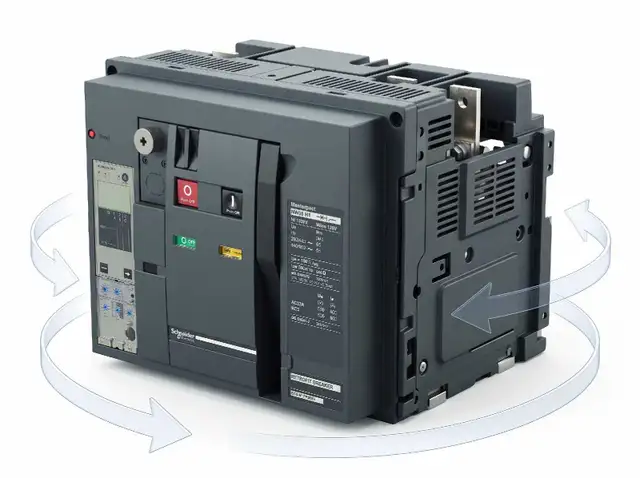

SCHNEIDER ELECTRIC MASTERPACT NW08 H1 – 800A AIR CIRCUIT BREAKER W/ MICROLOGIC 5.0 A TRIP UNIT
Merlin Gerin / Square D | 3-Pole | 690V AC | 65kA | Retrofit Breaker (RCS PP2005 / 47697)

Stocked locally in the Halifax / Milford Station area (NS) by GreenWave Industrial Technologies.

OVERVIEW & PROVENANCE
Genuine Schneider Electric Masterpact NW08 H1 (800 Amp) heavy-duty Air Circuit Breaker (ACB) equipped with a Micrologic 5.0 A (Digital Ammeter LSI Protection) electronic trip unit.

Decommissioned from a Canadian government/marine facility in Nova Scotia, this unit carries a professional inspection and test certification sticker from Pennecon Industrial Services (Dated June 2023).

Multiple Masterpact NW08 (800A) and NW20 (2000A) units are in stock at our Nova Scotia warehouse, along with Modicon M340 PLCs, Basler generator protection relays, Woodward 2301A speed controls, and SOCOMEC isolators. Volume discounts available for electrical contractors, marine shipyards, and facility managers buying multiple units.

COMPLETE NAMEPLATE SPECIFICATIONS
• Manufacturer: Schneider Electric / Merlin Gerin / Square D
• Model / Frame: Masterpact NW08 H1 (800A Frame, High Breaking Capacity H1)
• Configuration: Fixed / Retrofit Breaker (RCS No. PP2005 | Part ID: 47697)
• Electronic Trip Unit: Micrologic 5.0 A (Ammeter Long-Time, Short-Time, Instantaneous LSI)
• Sensor Rating Plug (In): 800A Installed
• Poles / Phases: 3-Pole (1A, 2B, 3C) / 3-Phase
• Operational Voltage (Ue): 220/440V AC to 480/690V AC (50/60 Hz)
• Insulation Voltage (Ui): 1000V AC | Impulse Withstand (Uimp): 12 kV
• Ultimate Breaking Capacity (Icu): 65 kA (at 220/440V & 480/690V AC)
• Service Breaking Capacity (Ics): 100% Icu (65 kA)
• Short-Time Withstand (Icw): 65 kA / 1s (Selectivity Category B)
• Switch-Disconnector Rating (IEC 60947-3): AC23A / AC3 - 800A at 690V AC
• Standards: IEC 60947-2, IEC 60947-3, UTE, VDE, BS, CEI, UNE, AS, NEMA

CONDITION & VERIFICATION
• Mechanical Verification: Tested for smooth manual spring charging, crisp "OK charged" indicator, "I Push ON" closing actuation, and "O Push OFF" release.
• Trip Unit: Clean Micrologic 5.0 A LCD screen, responsive keypad, and intact clear dial cover with seal tab.
• Service Tag: Inspected & tagged by Pennecon (NS: 902-482-0458), June 2023.
• Commercial invoice provided upon purchase.

PICKUP & CANADA-WIDE SHIPPING
• Local Pickup: Available by appointment near Halifax / Milford Station / Wyses Corner, NS (B0N 1Y0). We can assist with loading into your truck or van.
• Fast Shipping: We ship daily across Atlantic Canada, Quebec, Ontario, and Western Canada via UPS Heavy Ground or LTL Pallet Freight. Message us with your postal code for a fast shipping quote.
