Item number -022709

Promotion High Shear Emulsifying Pump Emulsion Pump Single Stage Pipelin 2200W 110V 2900r/min 022709

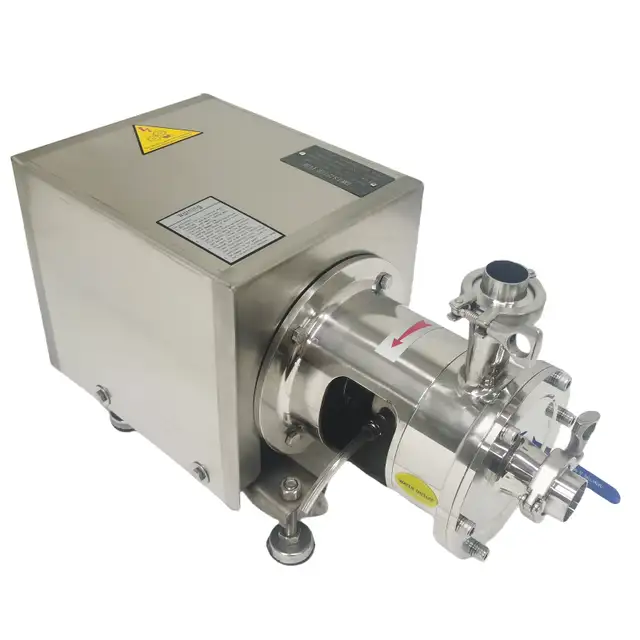

New Emulsion Pump High Shear Emulsifying Pump 110V 2.2KW

Product Overview
The High Shear Emulsifying Pump is an efficient emulsifying device, is mainly used for continuous and professional production and is suitable for various industrial fields with fine emulsification requirements. The device can achieve uniform dispersion and emulsification of materials, is small in size, simple in structure, high in efficiency, easy to operate and long in service life, and can be widely applied to the fields of biological medicine, food, cosmetic care, ink coating, nano-materials, petrochemical, printing and dyeing auxiliaries, paper making, pesticides and chemical fertilizers, plastics, rubber and other fine chemical mixing, dispersion and emulsification.

Product Parameters
Power 2.2KW
Voltage 110V
Frequency 60HZ
Speed 2900r/min
Flow range 0-3m3/h
N-d φ4-16mm
Inlet 38mm
Outlet 32mm
Material stainless steel 304


Product Features
Stainless Steel Material
Food-grade stainless steel
Reach the food hygiene level
Surface polishing treatment
Rust and corrosion resistance
　
Premium Pump Head
Adopt precise machining
Without liquid residues
Detachable pump head design
Convenient to disassemble and clean
　
Protective Cover
Wrap and protect the motor
Prevent liquid from splashing
Not prone to rusting and corrosion
Prolong the service life of the motor

Inlets and Outlets
Inlets and outlets with different functions
Ensure smooth circulation of liquid
Adopt clamp connection and fixing
Flexible to fix and loosen
　
　
Attention
1. Check whether the inlet seal and the outlet seal are good, and no impurities, metal chips and other materials that can cause damage to the equipment enter the body.
2. Check whether the motor and the machine are in good conditions when the machine is transported to leave the warehouse. When the power switch is connected, a safe contact motor device should be installed.
3. Before inlet and outlet process pipelines are connected, the process pipelines are cleaned, and it is ensured that the process pipelines are free of welding slag, metal chips, glass chips, quartz sand and other things which can cause damage to the equipment, and the process pipelines can be connected with the machine after being connected with the hard materials.
4. The installation position of the TRL1 pipeline equipment and the nearest location of the container can be selected such as the bottom of the container. The pipeline must be simple and direct, and the components of the elbow pipe are reduced as many as possible, thus reducing the resistance of the material in the circulation process.
5. The choice of location for intermittent equipment installation is suitable for the vertical level of container. When the machine topples over, it must be well sealed, moisture-proof, dust-proof and explosion-proof.

6. Before starting the machine, rotate the spindle, feel the height and flexibility with two hands, and determine no other frictional sound and abnormal sound.
7. When the pipelines are installed, the inlet and outlet pipes adopt the hoop electric connection structure.
8. After the above work is finished, the power supply is connected, and the steering shaft of the motor is checked repeatedly.

Maintenance
1. The cooling water is usually connected before the machine is started, and the cooling water is closed and then can be used.
2. The cooling water pressure is less than 0.2Mpa.
3. The material must enter the working chamber, and the machine can be switched on. It is also necessary to ensure that it does not run in the condition of material failure, so that idling and mechanical sealing are avoided. (A current protector is added when the emulsion pump is connected, so that burnout or the bad influence on the service life is avoided.)
4. A current protector is added when the emulsion pump is connected.
Important Note
After the sealing of the cooling water is confirmed, the motor is started, and the motor steering should be operated according to the steering sign of the main shaft, and the reversal is strictly prohibited!
It cannot be Idle and Reverse!!!!! (You must pay attention to it.)
Wiring diagram
Please note that the machine does not come with a power cord，The wiring position is shown in the diagram. Please find a professional to wire it.
　


Item Include
One set of Emulsion pump High Shear Emulsifying Pump #022709
-
