Item Number: 022488



Product Overview
The press sleeve machine is suitable for pressing and installing shaft sleeves of various tracked construction machinery and equipment. It is a device commonly used in construction machinery maintenance enterprises. This equipment adopts a bidirectional hydraulic device to reduce oil circuits, facilitate maintenance and operate flexibly.

Product Parameters

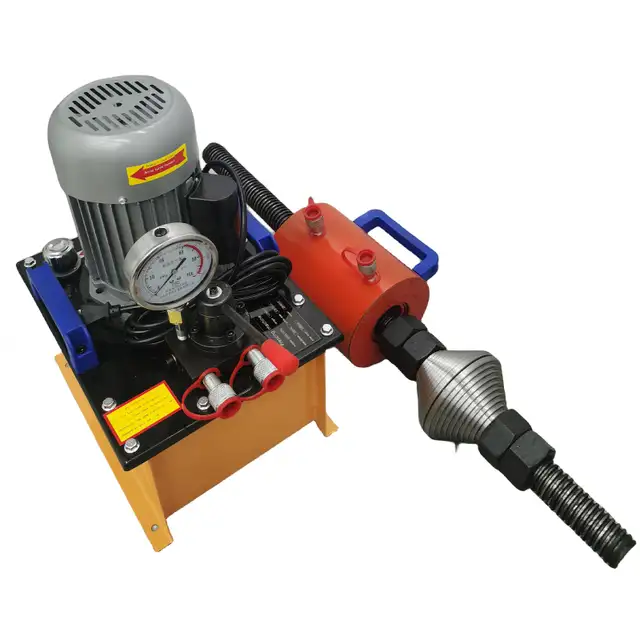

Product Name 100T Excavator sleeve pressing machine
Rated voltage 220V Single-Phase
Rated power 1500W
Pressure sleeve range greater than 60 mm and less than 150 mm (greater than 2.36 inch and less than 5.91 inch)
Screw diameter 50mm(1.96in)
Screw length 1000mm/39.37in
Cylinder stroke 100mm/3.937in
Operating pressure 0-63Mpa
Pump station volume 16L

Note: There will be a small error in manual measurement.
The product pump station is equipped with a plug.
The tank should be filled with hydraulic oil, and then the machine is powered on to start, otherwise the pump station will be damaged and the user needs to be responsible for the consequence.
The user needs to add #46 or #68 anti-wear hydraulic oil to the pump station.


Operation Method
1. Before operation, carefully check the pressure oil circuit, transmission device and hydraulic pressure, and ensure that the equipment is intact before starting.
2. At least two operators are required to operate the machine cooperatively, and it is prohibited to work alone.
3. Before pressing the sleeve, the flange sleeve and the core must be aligned.
4. If it is necessary to use a rod when pressing the sleeve, the rod must be aligned with the core to prevent slipping and injury.
5. When pressing the sleeve, no one is allowed to stand directly in front of the sleeve, the operators can only stand on the side of the core and keep 1.0m away from the core.
6. After pressing the sleeve, move the core and flange sleeve away from the operation area.
7. After the operation is completed, turn off the power supply and organize the site.
　
Application

Product Advantages

Sleeve Pressing Machine Body & Electric Pump

Small in size, compact in structure
Convenient to carry, store and use
Adopt multiple treatment and polishing to form the smooth surface
Perfect combination for sleeve pressing operation

High-Power Motor
Low noise, good stability
High performance, long service life
Stable power output for machine operation
Reliable operation, not prone to burnout

Thickened Cylinder
High working efficiency
High safety coefficient, long service time
Easy and convenient to operate and use
Exquisite workmanship and technology

Anti-shock Pressure Gauge
Clear and accurate in instrument display
Indicate the pressure in real time
Effectively avoid vibration and shock
Convenient to observe and adjust
　

Item Number (022488): 1 x 100T Excavator Sleeve Pressing Machine 220V
