REX 30 kVA ISOLATION TRANSFORMER – 600V TO 400Y/231V – TESTED – MUST GO BY FRIDAY
Rex Manufacturing (Rexdale, ON) 30 kVA 3-phase isolation transformer, catalogue # BA30JN1. CSA and UL listed.
SPECS: 30 kVA, 3-phase, 60 Hz, Type ANN, ventilated Enclosure Type-2. Primary: 600V Delta (H1-H2-H3). Secondary: 400Y/231V (X0-X1-X2-X3). Taps: 105% / 102.5% / 100% / 97.5% / 95%. Impedance 5.5%, BIL 10 kV, insulation class 220 C, temperature rise 150 C. Aluminium windings (per Rex catalogue), 275 lbs. Serial: 50318067.

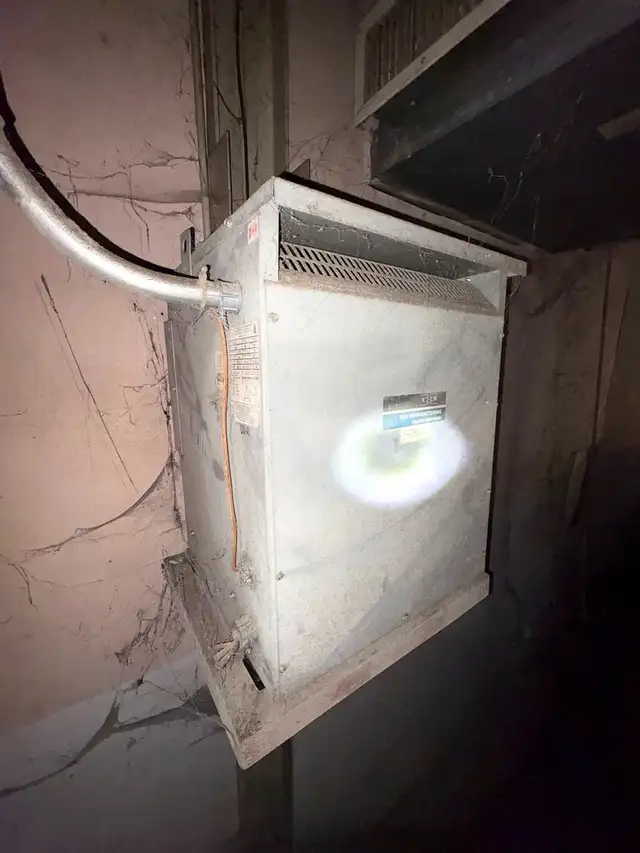

CONDITION: Tested. Dusty from warehouse storage, enclosure intact. Unit is wall-mounted high on the warehouse wall — see photos.
REMOVAL (READ THIS): The seller will have the unit disconnected. The BUYER is responsible for bringing it down — bring your own rigging, lift, and crew. Priced with that in mind.
WHY THIS UNIT: 400Y/231V output feeds imported European 400V equipment (CNC machines and similar) — a scarce configuration in Ontario. New ventilated equivalents run about $4,200 CAD; used 30 kVA units in Toronto have sold at $1,200–$1,350. Asking $1,100 OBO — must go by Friday.
Message to arrange pickup. Call Mohab — 289-788-8085. They're not just Good Finds, they're GREAT FINDS!
