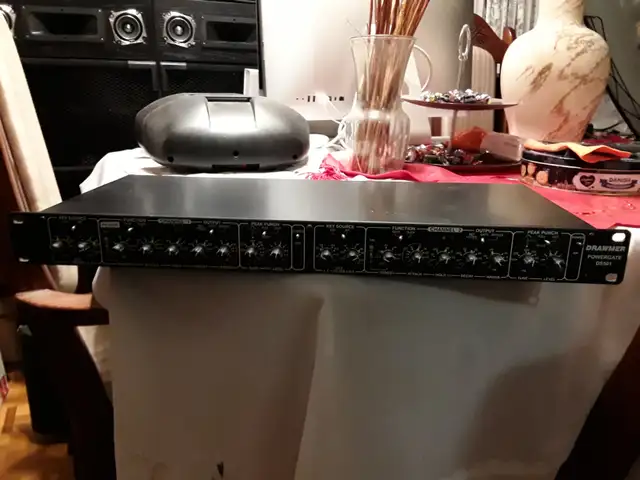

The Drawmer Powergate DS501 is an industry-standard dual-channel noise gate featuring proprietary Peak Punch circuitry to enhance transient leading edges.

Audio Performance
• Bandwidth: 23Hz to 31KHz (-1dB)
• Distortion (0dB Input): < 0.025% at 100Hz, 1KHz, and 10KHz
• Input Impedance: 20K Ohms
• Maximum Input Level: 17dB
• Output Impedance: 50 Ohms (Balanced)
• Maximum Output Level: 17dB

Functional Controls
• Peak Punch: Adds up to 12dB of dynamic emphasis over a 10ms period, tuneable from 75Hz to 16kHz.
• Side-Chain Filters: Variable high pass filter (HPF) and low pass filter (LPF) for frequency-selective gating.
• Envelope Controls: Full Attack, Hold, Decay, and Range attenuation adjustments.
• Modes: Switchable between normal Gating and Ducking functions.
• Keying options: Internal source, external Key input, and Key Listen monitoring capability.
• Link: Stereo linkable operation.

Physical Specs & Power
• Dimensions: 482mm (W) x 44mm (H) x 200mm (D) — Standard 1U 19" rackmount.
• Weight: 3.4 Kg (including packaging).
• Power Supply: Switchable 93-125V or 185-250V AC at 50-60Hz, 9 Watts.
• Fuse Rating: 80mA for 230V, 160mA for 115V.
• Fuse Type: 20mm x 5mm, Class 3 Time Delay, 250V working voltage.
